Customized Battery Test Equipment Intelligent Battery Compression Test Chamber

Name: Customized Battery Test Equipment Intelligent Battery Compression Test Chamber
Brand: GSKA
Price: 1 USD

China Customized Battery Test Equipment Intelligent Battery Compression Test Chamber wholesale

Brand Name : GSKA

Model Number : Battery short circuit tester

Certification : CE SGS ROHS UL CE

Place of Origin : Dongguan China

MOQ : Negotiate

Price : Negotiate

Supply Ability : 1000 Set / Sets per Month

Delivery Time : 10-60days after confirmed payment or by contract stipulation

Packaging Details : Export package

Temperature display accuracy : 0.1℃;

Heating time : (5±1)℃/min;

Internal material : SUS304 stainless steel plate, thickness 1.2mm;

Temperature collection range : RT+10 ~ 1000℃;

Voltage acquisition range : 0-100V;

Maximum short-circuit current : 1000A;

Contact Now

Customized Battery Test Equipment Intelligent Battery Compression Test Chamber

Operating steps:

Place the fully charged battery in an environment of 55°C±5°C. After the surface temperature of the battery reaches 55°C±5°C,leave it for 30 minutes, then connect the positive and negative terminals of the battery with wires, and ensure that all external resistances are at 80°C. ±20mΩ, monitor the battery surface temperature change during the test. When one of the following two situations occurs, the test is terminated:

(1) The battery surface temperature drops 20% lower than the peak value;

(2) The short circuit time reaches 24 hours;

The battery should not fire or explode, and the maximum temperature should not exceed 150°C.

Test Standard:

GB/T 31485-2015 "Safety requirements and test methods for power batteries for electric vehicles"

GB/T 31241-2014 "Safety requirements for lithium-ion batteries and battery packs for portable electronic products"

UN38.3 "United Nations Manual of Tests and Standards for Transport of Dangerous Goods"

IEC62133 "Battery (group) composed of batteries and safety requirements for portable equipment"

UL 1642:2012 "Lithium Battery Standard"

1. Inner box size	400x400x400mm (width x depth x height);
2. Dimensions	800x700x1310mm (width x depth x height);
3. Temperature range	RT+10~200℃;
4. Temperature display accuracy	0.1℃;
5. Temperature stability	±1.0℃;
6. Temperature uniformity	±2℃;
7. Heating time	(5±1)℃/min;
8. Internal material	SUS304 stainless steel plate, thickness 1.2mm;
9. External material	1.5mm thick cold-rolled steel plate with paint treatment;
10. Box door	a single door opens to the left, and an explosion-proof chain is installed on the side of the box door;
11. Smoke exhaust pipe	diameter φ100mm, located at the back of the box
12. Control method	PLC touch screen control;
13. Temperature collection range	RT+10 ~ 1000℃;
14. Temperature acquisition channel	1 channel;
15. Voltage acquisition range	0-100V;
16. Voltage acquisition channel	1 channel;
17. Maximum short-circuit current	1000A;
18. Current acquisition channel	1 channel;
19. The internal resistance of the device loop	80±20mΩ;
20. Pressure relief door size	200x200mm;

Temperature control system:

1. Touch-type intelligent programmable temperature regulator: It adopts the original imported microcomputer digital temperature controller, multiple PID control functions, and it is displayed on the screen in the form of data.

2. With a wide temperature control range.

3. Using a unique balance temperature adjustment method, the ideal temperature environment can be adjusted. With stable and balanced heating capacity, high-precision and high-stability temperature control can be carried out.

4. All components for heating and cooling are fully controlled automatically by microcomputer, and the system is completely independent; equipped with an intelligent controller.

5. It has the functions of program correction, clearing, appointment start, power failure memory, etc.

Environment conditions:

1. Ambient temperature: room temperature~45℃

2. Environmental humidity: 20%~80±5%R.H

3. Atmospheric pressure: 86kPa~106kPa

4. There is no strong vibration around, no direct sunlight or other heat sources.

5. The installation base is the ground, and the ground is required to be clean and flat.

6. Power supply: AC220V, grounding.

Customized Battery Test Equipment Intelligent Battery Compression Test Chamber

Product Tags:

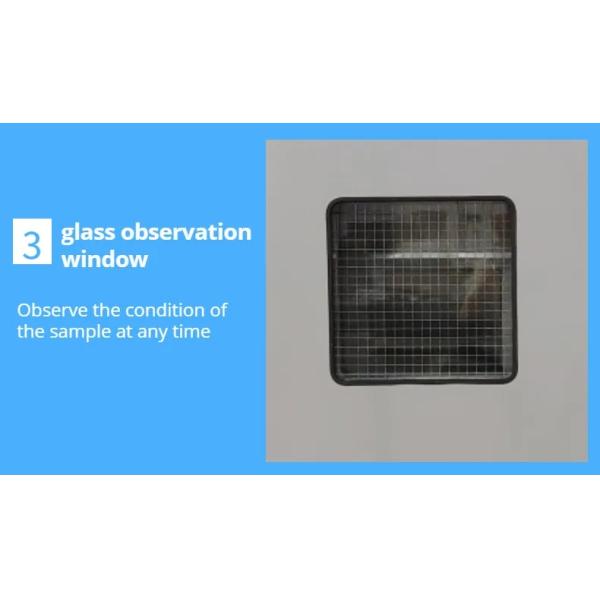

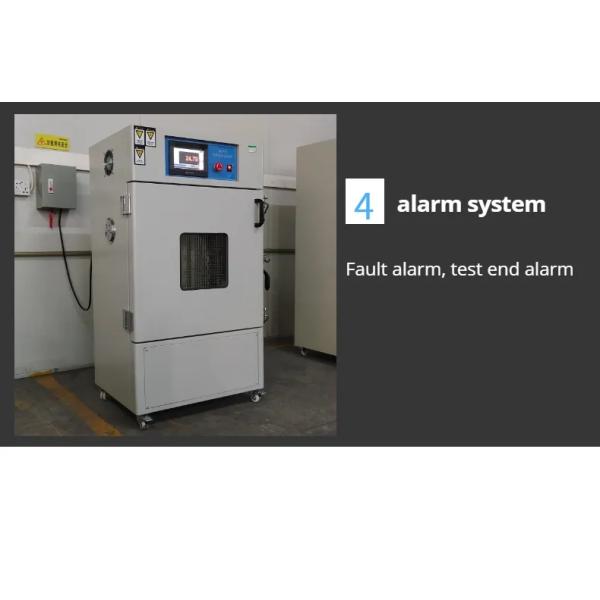

Customized Battery Test Equipment Intelligent Battery Compression Test Chamber Images
